Thinking about switching to an electric vehicle (EV) but feeling overwhelmed by all the charging talk? You’re not alone. Terms like “level 2,” “240 volts,” and “amps” can feel like a different language at first. But don’t worry—this guide breaks it all down in simple terms so you can make smart, confident decisions before you even step foot in a dealership.
Understanding the Three Levels of EV Charging
Whether you're a first-time EV buyer or planning to upgrade your home setup, knowing the difference between Level 1, Level 2, and Level 3 charging is key. These “levels” refer to how much power the charger delivers and how quickly your electric vehicle’s battery gets replenished.
🔌 Level 1 Charging: Slow but Simple
- Plug Type: Standard household outlet (120V)
- Charging Speed: ~3–5 miles of driving range per hour
- Best For: Plug-in hybrids (PHEVs) or occasional top-ups for full EVs
- Installation Needed: None — just plug it into a regular outlet
Level 1 is the most basic form of EV charging. It uses the same type of three-prong outlet you’d use for a lamp or coffee maker. Most EVs come with a Level 1 charger bundled in the trunk.
Level 1 can work if you drive very little or own a plug-in hybrid with a smaller battery. But for full-time EV owners, the charging speed just isn’t practical for daily use.
⚡ Level 2 Charging: Ideal for Home Use
- Plug Type: 240V outlet (like the ones used by electric dryers or ovens)
- Charging Speed: ~20–45 miles of range per hour
- Best For: Overnight charging at home, daily use, EVs with larger batteries
- Installation Needed: Requires a dedicated 240V outlet (usually installed by a licensed electrician)
Level 2 is the sweet spot for most EV owners — it’s fast, efficient, and future-proof. With this setup, you can easily recharge your EV overnight and start each day with a full battery. It’s also the standard for many public charging stations at workplaces, apartment complexes, or shopping centers.
If you're looking for a dependable and high-performance charger, the Mustart Level 2 EV Charger (48 amps) is a strong choice. With support for high amperage, it delivers faster charging speeds and works with nearly all EV models. Bonus: many units offer smart charging features that let you schedule charging during off-peak electricity hours for cost savings.
⚡⚡ Level 3 Charging: DC Fast Charging
- Plug Type: High-power commercial connectors (e.g., CHAdeMO, CCS, Tesla Supercharger)
- Charging Speed: 80% battery charge in 20–45 minutes
- Best For: Road trips, long-distance travel, or emergency recharges
- Installation Needed: Not available for home use — requires industrial power
Level 3 chargers, also called DC Fast Chargers (DCFC), skip the slower AC charging process and pump direct current (DC) straight into your car’s battery. These ultra-fast chargers are found at highway rest stops, EV corridors, and commercial charging hubs, and are designed to get you back on the road quickly.
While convenient, DC fast charging is not recommended for everyday use. Frequent high-voltage charging can lead to faster battery degradation over time. Think of it like using turbo mode on your phone charger — helpful in a pinch, but not ideal every day.

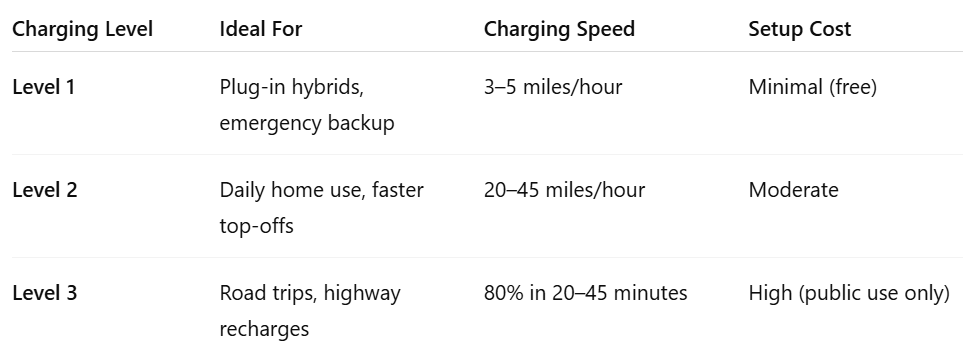

✅ Which Level Is Right for You?
If you own a full EV and plan to drive it regularly, Level 2 charging is practically essential. It's the best balance between cost, speed, and convenience — especially when paired with a reliable home unit like the Mustart 48A Level 2 Charger.
Home Charging vs. Public Charging: What’s Best?
For most electric vehicle (EV) owners, charging at home is the clear winner in terms of cost, convenience, and consistency. But public charging plays an important role too — especially for long trips, emergencies, or drivers who don’t have access to a home charger.
Let’s take a closer look at both:
🏠 Home Charging: Reliable, Convenient, and Cost-Effective
Charging at home is like plugging in your smartphone overnight — simple and seamless.
🔹 Why Home Charging Works So Well:
- Convenience: No detours. Just plug in after work and forget about it.
- Savings: Many utilities offer lower electricity rates at night (known as time-of-use pricing). Charging during these off-peak hours can significantly reduce your fueling costs.
- Control: You’re not waiting in line, and you’re not competing for chargers with strangers.
- Long-Term Payoff: A one-time investment in a quality home charger (like the Mustart Level 2 EV Charger, 48 amps) can provide years of reliable service, with the ability to charge most EVs fully overnight.
If your EV gets 300 miles on a full charge and your daily commute is 30–40 miles, you’ll likely only need to charge once or twice per week at home.
🚗 Public Charging: Flexible and Expanding
While home charging covers most day-to-day needs, public charging is crucial for:
- Road trips or long-distance travel
- Urban dwellers without home chargers
- Topping off while shopping or dining
🔹 Where You’ll Commonly Find Public Chargers:
- Grocery stores and shopping malls
- Movie theaters
- Workplaces and business parks
- Hotels and resorts
- Highway rest stops and EV corridors
You’ll see both Level 2 chargers (which take a few hours) and DC fast chargers (which charge to 80% in under an hour) in public networks. Apps like PlugShare and ChargePoint help locate available stations nearby.
🏢 No Garage? No Problem.
If you rent, live in a condo, or don’t have a garage, you’re not out of luck.
🔹 Your Options:
- Shared community chargers: Many multi-unit buildings are now installing chargers for residents.
- Requesting installation: Ask your landlord or HOA about adding EV charging. Many utilities and state/local governments offer rebates or tax credits that reduce or eliminate costs for property owners.
- Portable charging solutions: Some EV owners use portable Level 2 chargers (like Mustart’s 48A model) and plug into existing 240V outlets at work or family homes.
🔗 Helpful Resource:
- The U.S. Department of Energy’s guide on EV Charging for Renters and Multifamily Housing is a must-read. It offers tips, cost breakdowns, and incentives to help renters and property managers make the switch.

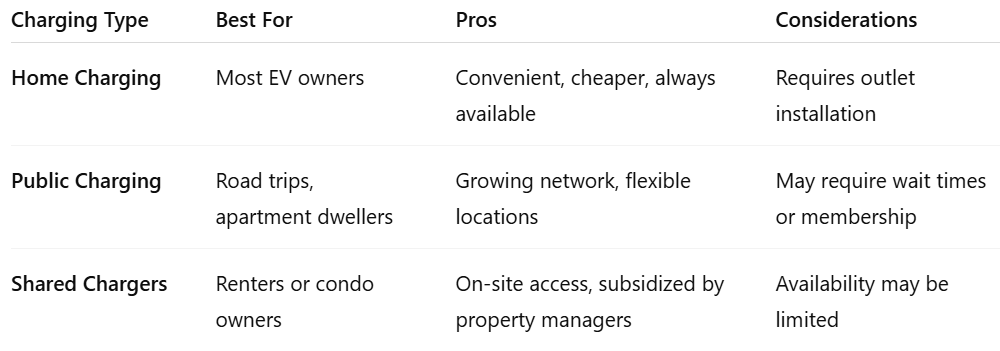

✅ Summary: Which Charging Method Should You Use?
Home charging is the gold standard if you have access to a 240V outlet and can install a charger. It saves time and money while offering peace of mind. But public infrastructure is growing fast, making it easier than ever to drive electric — even without a home setup.
And if you're planning your own charging station, the Mustart Level 2 Charger (48 amps) is a solid investment. It’s powerful, portable, and designed to grow with your EV needs.
Amps = Charging Speed: Why It Matters
When you’re shopping for an EV charger, amperage is one of the most important numbers to pay attention to. It tells you how quickly the charger can deliver electricity to your vehicle — which directly affects how fast your battery fills up.
🔹 What Are Amps in EV Charging?
Amperage (amps) measures the amount of electrical current flowing to your vehicle. The higher the amps, the faster your EV can charge — assuming your car and electrical panel can handle it.

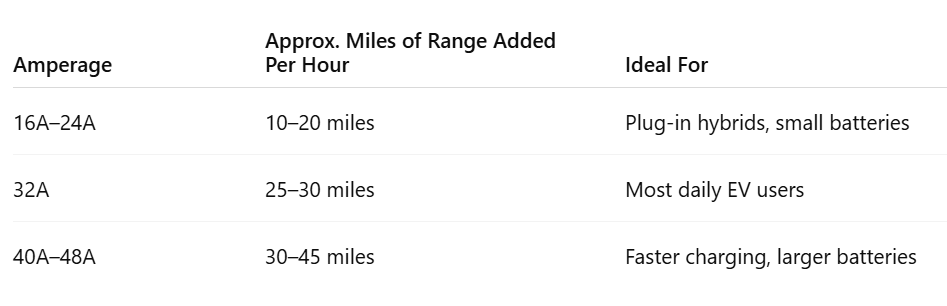

Here’s a quick guide:
| Amperage | Approx. Miles of Range Added Per Hour | Ideal For |
|---|---|---|
| 16A–24A | 10–20 miles | Plug-in hybrids, small batteries |
| 32A | 25–30 miles | Most daily EV users |
| 40A–48A | 30–45 miles | Faster charging, larger batteries |
✅ Why Adjustable Amperage is a Smart Feature
Many Level 2 chargers today offer adjustable amperage settings. That means you can set the charger to a lower amp level (say 32A) if your home’s electrical panel is limited, and upgrade later to 40A or 48A without buying a new charger.
🔌 110v vs. 240v: What’s the Difference?
Amps determine how fast electricity flows to your car, but volts determine how much power is available in the first place.
Let’s break down the difference:
⚪ 110v/120v Charging (Level 1)
- Found In: Standard home wall outlets
- Charging Speed: ~3–5 miles of range per hour
- Best For: Emergency use, plug-in hybrids, or very short commutes
- Setup Required: None — just plug it in
🔵 240v Charging (Level 2)
- Found In: Outlets used for large appliances like dryers
- Charging Speed: ~20–45 miles of range per hour
- Best For: Daily home charging for any EV
- Setup Required: Professional installation by a licensed electrician
📘 Want to Go Deeper?
If you're planning to install a Level 2 charger at home, the National Electrical Code (NEC) Article 625 provides the official U.S. guidelines for safe EV charger installations, including:
- Outlet types
- Conduit requirements
- Ground fault protection
- Breaker sizing and wiring specs
Some states and cities also offer rebates and permit incentives for compliant installations — check with your local utility provider or building department for details.
- Amps = speed. Higher amperage means your EV charges faster, as long as your car and panel support it.
- 240v = power. It’s essential for daily use — and it requires professional setup.
- Future-proof your charging. A charger like the Mustart Level 2 (48A) gives you the best of both worlds: flexibility today and performance tomorrow.
Thinking ahead about amps and volts will help you set up a safe, efficient, and cost-effective EV charging station that’s ready to grow with you.
Should You Invest in a Level 2 Home Charger?
Yes—absolutely. A Level 2 charger is not just a convenience upgrade; it’s an investment in your EV’s performance, your daily routine, and even your home’s long-term value.
Let’s unpack what makes it so worthwhile.
🔋 1. Charge Overnight — and Wake Up Ready to Roll
With a Level 1 charger (the kind that plugs into a standard 120V outlet), charging your EV can take 20 to 40+ hours depending on battery size. That’s fine for emergencies or hybrids—but not ideal for full-time EV use.
A Level 2 charger, on the other hand, uses a 240V outlet to deliver 20 to 45 miles of range per hour, letting you:
- Fully charge your EV overnight
- Skip the hassle of public charging
- Start each day with a full battery — just like your phone
🚗 2. Future-Proof Your Setup
EV technology is moving fast. Newer vehicles are coming with larger batteries and higher charging capacities. Installing a flexible, high-powered charger now means you’ll be ready for what’s next — without needing another upgrade down the road.
Take the Mustart Level 2 EV Charger (48 amps) as an example:
- Offers adjustable amperage (up to 48A) for different EV needs
- Compatible with nearly all EV models
- Built to handle higher loads for faster charging today and tomorrow
That’s long-term peace of mind with no extra hardware swaps later.
🏡 3. Increase Your Home’s Resale Value
As electric vehicle adoption grows, more homebuyers are looking for properties that are EV-ready. Installing a Level 2 charger adds value in several ways:
- Modern appeal: EV charging is a desirable, high-tech home feature
- Energy efficiency: Signals a commitment to sustainability
- Practical infrastructure: Saves the next homeowner time and cost
According to a study from Realtor.com, homes with EV charging access can sell faster and for more money, especially in eco-conscious markets.
💰 4. It’s a Small Investment With Big Returns
A Level 2 charger typically costs between $300 and $800, plus installation — which may qualify for rebates or tax incentives depending on your state. Check out these helpful links:
Once installed, you’ll enjoy:
- Lower cost-per-mile vs. gasoline
- Time saved from not visiting public charging stations
- Greater control over your energy usage and scheduling
Final Thoughts: Charging Made Simple
Making the switch to electric doesn’t have to be complicated. Once you understand the charging basics—levels, volts, amps—you’re in a better position to choose the right EV and charging setup for your lifestyle.
Whether you’re charging from a garage, driveway, or apartment lot, having the right charger at home makes owning an EV easier, cleaner, and far more convenient.
So if you're ready to embrace the future of driving, don’t just focus on the car—invest in a charger that’s fast, safe, and built to last.
